Descrizione
Installation of this kit requires simple soldering of two wires to your CPS-1 motherboard, you also need to replace a PAL chip with the one included in the kit.
IMPORTANT: Aside from a working CPS-1 motherboard, you will also need a compatible C-Board for the kit to function. See installation manual linked below for guidance.

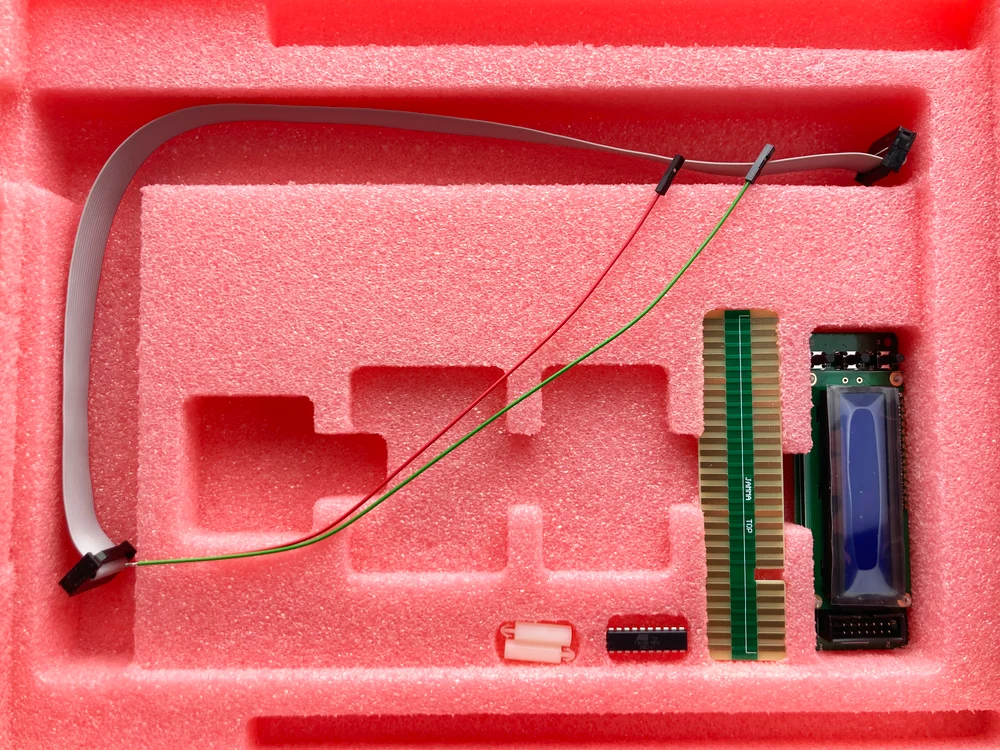

The Multi Kit comes with the Multi PCB, Filter Board with JAMMA Finger, an audio/sound Daughter Board, replacement PAL chip, 2 x prepared DuPont cables and a LCD Selector with 30cm ribbon cable in a bespoke Darksoft cardboard box!
Download: CPS1_Multi_Guide_v1.4
Here is a video showing how to install the CPS-1 Multi:
